Product Information

An unbeatable combination of great design and latest USB technology to programme the device or record patient data, this Spectra comes with PU, wipe clean supports.

Features Great functionality, including programming:

The Kinetec Spectra™ offers a full range of movement options and controls, set by using the handset. Alongside your standard controls, this CPM offers additional functionality such as warm-up function, 20 pre-set programmes, session timing and ROM by-pass. Using a USB accessory and software, this option can also be used to capture individual patient session information.

Movements and controls available:

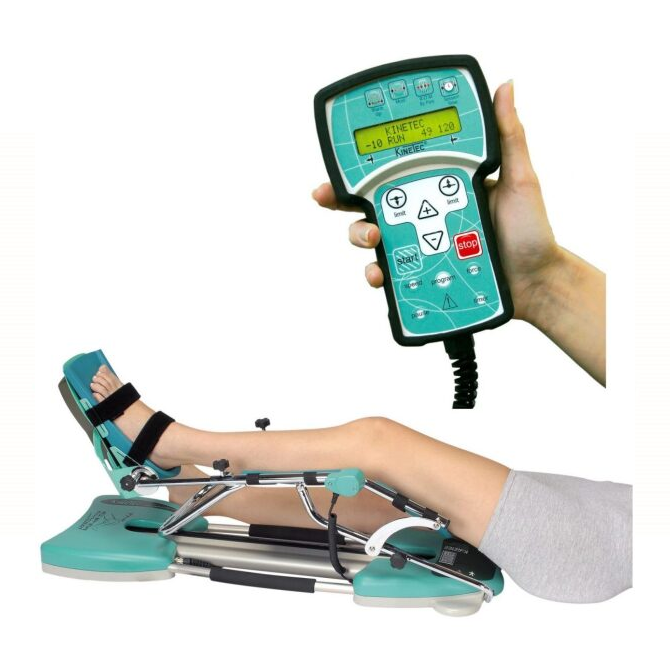

The following elements can be set and controlled via the handset - extension and flexion limits, speed, resistive force, timer and pause in extension and flexion. The hand control has clear start and stop buttons. The handset is also be used for selecting pre-set programmes, warm-up function, ROM bypass and session timing.

Patient safety:

The handset can be easily locked to prevent alteration of the parameters by patients whilst in use.

Outstanding range of motion:

This CPM provides a wide range of motion from -10 of hyperextension to 120 degrees of flexion allows treatment of most knee & hip pathologies.

Evolution compliant:

The Spectra Essential can be upgraded to the new Kompanion.

PU leg supports:

This version of the Spectra is supplied with PU pads that can be wipe-cleaned between patients using standard hospital anti-bacterial wipes. The pads should be wiped between patients. (Supplied with thigh, calf and foot support).

Accessories:

Accessories include Data Capture software to record patient information and progress, a seat adaptor to use it in seated position, a trolley and paediatric footplate (to allow for shorter legs). Single-use, disposable pads are also available for this CPM.

Specifications Product:

Weight 12kg (26 pounds)

Product: Splint dimensions 95 cm (37 in) x 33 cm (13 in) x 33cm (13 in)

Product: Angular limits -10 to 120°

Product: Speed from 40 to 145° per minute.

Product: Patient height from 1.45 m (4' 9") to 1.95 m (6' 4")

Product: Patient full leg from 71cm to 99cm (28” to 39”); Tibia from 38 to 53cm (15” to 21”); Femur from 33 to 46cm (13” to 18”) Product: With paediatric footplate option- patient full leg from 53cm to 109cm (21” to 43”); Tibia from 20cm to 56cm (8” to 22”);

Product: Maximum user weight 135kg (298 pounds)

Electrical: Power supply 100-240 V~

Electrical: Frequency 50-60Hz

Electrical: Power consumption 20W

Electrical: Device of type B Class 1

Electrical: IP 20

Storage/Transport Conditions: Temperature -40 to 70°C / -40 to 160°F

Storage/Transport Conditions: Relative humidity up to 90% Operating Conditions:

Room temperature 10 to 40°C (50 to 105°F)

Operating Conditions: Relative humidity up to 80%
